深海控制器8610 DEEP SEA DSE 8610 GENSET GENERATOR CONTROLLER DSE8610

网站的配件型号有限，如需更多的配件型号信息，可以微信或者电话联系313689345

Generator Type: Diesel or Gasoline

Part No. : DSE8610

Replaced Brand: Deep Sea / DSE

Controller Type: Auto Genset Controller

Software: Compatible with DSE

Function: DSE 8610 Controller

Usage: Deep Sea Controller DSE8610

Compatible with: DSE Controller DSE8610

Product Name: Deep Sea 8610 Genset Controller

Language: English, Chinese and etc.

Compatible Gensets: Cummins,Perkins,Deutz,Caterpillar, Aksa, Volve, Marelli,

Mecc Alte, Marathon, WeiChai, ShangChai, YaNan and many more Brands

Generator brand: Leroy somer, kato engineering, Stamford.

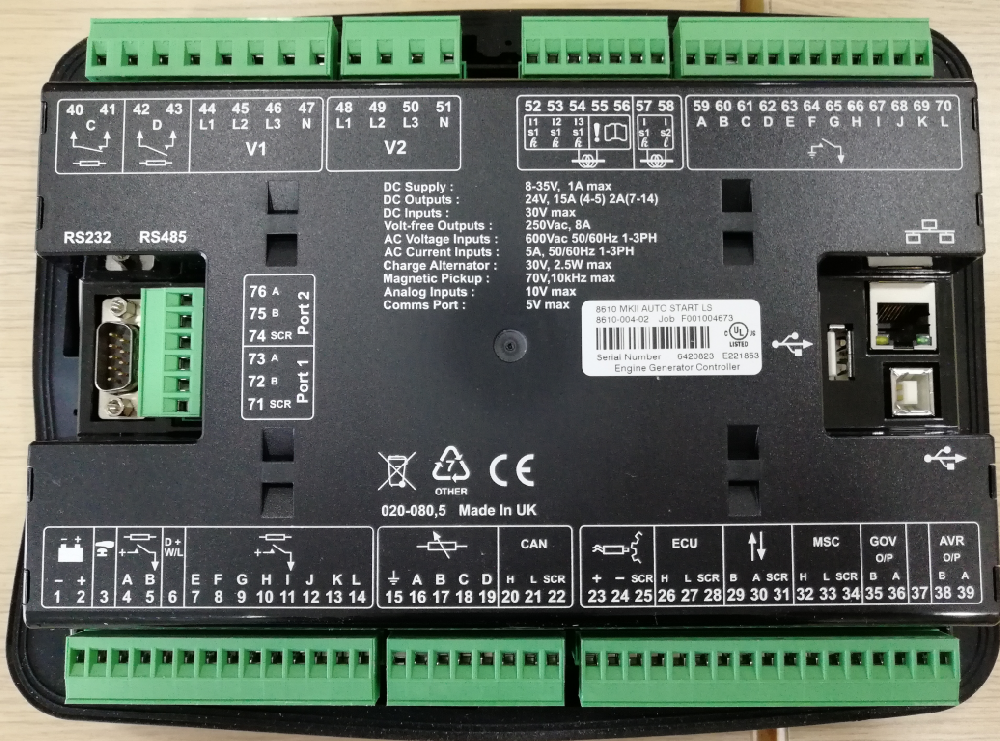

Deep Sea DSE 8610 Genset Generator Controller DSE8610

DSE8610 Product Specification Download.pdf

AUTO START CONTROL MODULES

The Brands mentioned here are for reference only, our parts can exactly replace the original ones.

How to choose a suitable Auto Genset Controller?

1. Cheap Genset Controller : DSE501K, DSE701, DSE702, DSE704, DSE3110, DSE4520, DSE4620 (for low cost small power Gensets)

2. More Functions Genset Controller: DSE5110, DSE5220, DSE6020, DSE6120, DSE8610, DSE7220, DSE7310, DSE7320, MRS-10, MRS-16, AMF-20, AMF-25 (for high power Genset)

3. More Languages Genset Controller: DSE6120, DSE8610, DSE7220, DSE7310, DSE7320, MRS-10, MRS-16, AMF-20, AMF-25 (Avaliable Languages: English, Spanish, Portuguese, French, German, Russian, Chinese and etc.)

4. AMF Controller Modules: DSE704, DSE720, DSE5220, DSE6120, DSE7220, DSE7320; AMF-20, AMF-25 (Auto Mains Failure Genset Control Modules)

5. Synchronising and Load Share Controller: DSE8610, DSE8620, DSE8660, ICNT-MINT, ICNT-MCNT, ICNT-SPTM

6. Canbus ECU Communications Genset Control Panel: MRS-16, AMF-25, DSE8610, DSE7220, DSE7310, DSE7320, DSE3110 ECU, DSE4520, DSE7320 MKII

The DSE 8610 Genset Controller is an Auto Start Control Module and the Deep Sea DSE7220 Genset Controller is an Auto Mains (Utility) Failure Control Module suitable for a wide variety of single, diesel or gas, gen-set applications.

Monitoring an extensive number of engine parameters, the modules will display warnings, shutdown and engine status information on the back-lit LCD screen and illuminated LEDs. The deep sea 8610 Genset Controller will also monitor the mains (utility) supply.

Deep Sea DSE8610 Generator Controller are compatible with electronic (CAN) and non-electronic (magnetic pick-up/alternator sensing) engines and offer an extensive number of flexible inputs, outputs and engine protections so the system can be easily adapted to suit a wide range of application demands.

Enhanced features include a real time clock for improved event monitoring, the ability to display information in any language and a clear 4-line text display.

The modules can be easily configured using the DSE Configuration Suite PC software.

Selected front panel editing is also available.

KEY FEATURES of Deep Sea Genset Controller DSE8610

• 4-Line back- lit LCD text display

• Five key menu navigation

• Front panel editing with PIN protection

• LED and LCD alarm indication

• Customisable status screens

• Power save mode

• 7 configurable inputs

• 8 configurable outputs

• Configurable timers and alarms

• 3 configurable maintenance alarms

• Multiple date and time scheduler

• Configurable event log (100)

• Control logic facilities

• Easy access diagnostic page

• CAN and Magnetic Pick-up/Alt. sensing

• Fuel usage monitor and low fuel alarms

• Charge alternator failure alarm

• Manual speed control (on compatible CAN engines)

• Manual fuel pump control

• Engine exerciser

• “Protections disabled” feature

• KW Overload protection

• Power monitoring (kW h, kV Ar, kV A h, kV Ar h)

• Load switching (load shedding and dummy load outputs)

• True dual mutual standby with load balancing timer (Deep Sea DSE8610 Genset Controller only)

• USB connectivity

• Backed-up real-time clock

• Fully configurable via DSE Configuration Suite PC software

• Configurable display languages

• Remote SCADA monitoring via DSE Configuration Suite PC software

KEY BENEFITS of Generator Controller Deep Sea 8610

• 132 x 64 pixel ratio display for clarity

• Real-time clock provides accurate event logging

• Multiple date and time scheduler

• Set maintenance periods can be configured to maintain optimum engine performance

• Licence-free PC software

• IP65 rating (with supplied gasket) offers increased resistance to water ingress
