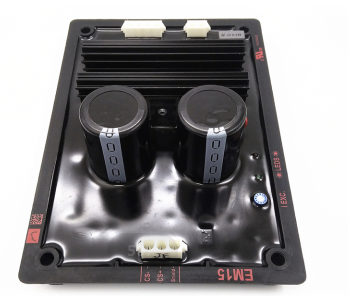

EM15_Leroysomer，利莱森玛，卡特彼勒3512
如下信息来自网络，需要进一步核实，有需要技术问题可以电话联系15960117541
Specification:
| Parameter sheet of AVR SX460 | |||
| Input | Voltage | Jumper selectable 95-132V ac or 190-264V ac | |
| Frequency | 50-60 Hz nominal | ||
| Phase | 1 | ||
| Output | Voltage | max 90V dc at 207V ac input | |
| Current | continuous 4A dc, intermittent 6A for 10 secs | ||
| Resistance | 15 ohms minimum | ||
| Regulation | +/- 1.0% | ||
| Thermal Drift | 0.05% per deg. C change in AVR ambient | ||
| Typical system response | AVR response | 20ms | |
| Filed current to 90% | 80 ms | ||
| Machine Volts to 97% | 300ms | ||
| External voltage adjustment | +/-10% with 1 k ohm 1 watt trimmer | ||
| Under frequency protection | Set point | 95% Hz | |
| Slope | 170% down to 30 Hz | ||
| Unit power dissipation | 12 watts maximum | 10 watts maximum | |
| Build up voltage | 4 Volts @ AVR terminals | ||
| Environmental | Vibration | 20-100 Hz,50mm/se | |
| 100Hz - 2kHz, 3.3g | |||
| Operating temperature | -40 to +70 Deg. C | ||
| Relative Humidity 0-70 Deg. C | 95% | ||
| Storage temperature | -55 to +80 Deg. C | ||
