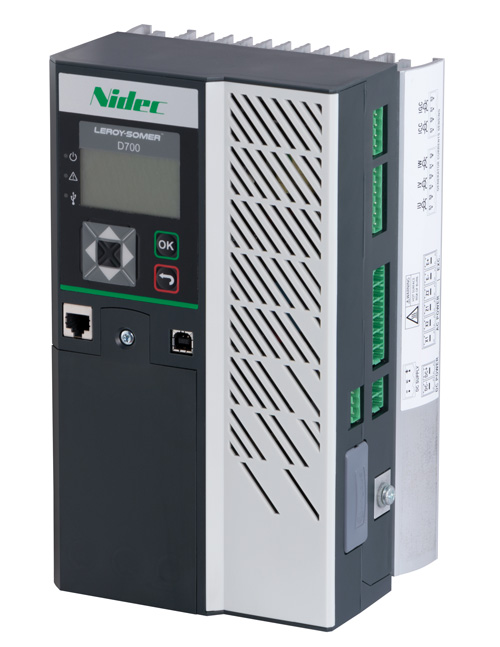

LEROYSOMER利莱森玛D700-Nidec D700-kato engineering D700销售及其技术说明指导
智来机电为您提供利莱森玛（leroysomer-nidec）、卡特彼勒、威尔逊全系列发电机整机及配件供应，如有需要可以联系电话+86 13055256241 （微信和what'sApp同号）。
A combination of accurate regulation and embedded features allows the user to easily integrate with a multitude of generator set applications.
Numerous inputs and outputs can be configured to perform basic logic functions using the EasyReg Advanced software.
The D700 can be configured via on-board control panel, or with a USB or Ethernet link. Additional communication protocols available via optional additional hardware.
| Technology | Digital |
| Excitation mode | SHUNT, AREP, PMG |
| Rated excitation current | 25 A at 40°C / 20 A at 55°C / 15 A at 70°C |
| Regulation accuracy (+/- %) | 0.25 % |
| Frequency range | 10 – 400 Hz |
| Voltage setting range (+/- %) | 30 % |
| kU/F limitation | 0.5 < k < 5 |
| Loss of sensing voltage | ✓ |
| Over-excitation limitation | ✓ |
| Short circuit current limitation | ✓ |
| Voltage droop | ✓ |
| Parallel operation between alternators | ✓ |
| Load Acceptance Module (LAM) | ✓ |
